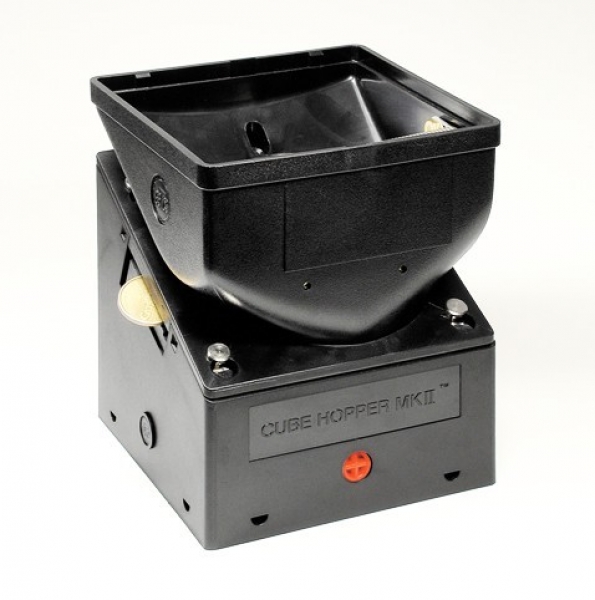

Hopper Cube MKII Intelligent
The hopper has been designed according to the highest standards for reliability and security for the Gaming, Vending and Amusement Industry. Made from extremely strong, wearing resistant plastics, the Cube Hopper is a high speed, single denomination hopper with expandable hopper capacity.
Probable the most successful hopper in all new markets today the Cube Hopper has build it's reputation fast.
The hopper is square and easy to mount by means of a standard mounting-bracket. (included).
With one configuration it covers the 0,50, 1,00 and 2,00 Euro coins, and in case of conversion the disc can be replaced in seconds to convert the denomination of the hopper (no tools required).
This hopper has the same mechanical functions as the MK2 series but can be set to different operating modes depending on your preferences.
Operating mode 1: Continuous mode This works similar as the standard MK2 hopper.
Operating mode 2: Logic mode The hopper will work with a logic signal high or low to start and stop the hopper.
Operating mode 3: Pulse mode The hopper will pay out 1 coin for each pulse send to the hopper.
Operating mode 4: RS232 mode The hopper works on a simple RS232 operating protocol.
Operating modes are selected by jumper settings on the main board
By using an unique "Sun & Planet" gearbox system, this hopper offers the possibility to contain and count (with two extentions) over 1200 coins of 24mm diameter.
The hopper is protected by an auto-reverse anti-jam system and has optical readout.
Optional a second optical readout is available.
A low detection is integrated in the coincup and can be connected at pin 1 and 2.
Features:
Standard 450 coins capacity of 24mm diameter. Coin cup extentions available (optional) which will increase capacity up to average 400 coins per extention (24mm diameter). Maximum 2 extentions up to 25,6mm.
High pay out speed : 400 coins per minute.
Coin size range: Diameter 18 - 31mm. Thickness 1,5 -3,2mm (all Euro coins , except 1 Euro cent).
Supplied complete with mounting bracket. Hopper conversion into different coinage is easy and fast. Low level cup sensing integrated into connector as standard.
Planetarygearbox system provides maximun torque with minimal power consumption (350 mA bis 850 mA) with a 2 Amp peak at 24 VDC).
Interfaces:
Operating mode 1: Continuous mode This works similar as the standard MK2 hopper.
Operating mode 2: Logic mode The hopper will work with a logic signal high or low to start and stop the hopper.
Operating mode 3: Pulse mode The hopper will pay out 1 coin for each pulse send to the hopper.
Operating mode 4: RS232 mode The hopper works on a simple RS232 operating protocol.
Operating modes are selected by jumper settings on the main board
Safety:
The hopper is protected by an auto-reverse anti-jam system and has optical readout. Optional a second optical readout is available. Integrated optical read-out sensor under platform. (Sensor cannot get dirty or be approached with any light source). CE approved.
Technical specifications:
Capacity: 450 coins with extentionsup to 1200 coins.
Version with CC-Talk protocol available.
Standard operating voltage: 12 VDC or 24 VDC
Power consumption:
350 mA until 850mA 2 Amp. peak Duty cycle: 2:1
Dimensions:
Hopper without extention: WxLxH 121,5 mm x 121,5 mm x 150 mm
Weight: 780 gramm
Hopper with one extention: WxLxH 121,5 mm x 121,5 mm x 215,5 mm
Weight: 860 gramm
Hopper with two extentions: WxLxH 121,5mm x 121,5 mm x :284 mm
Weight: 940 gramm
Further technical informations and Datas you will find in the manual.
