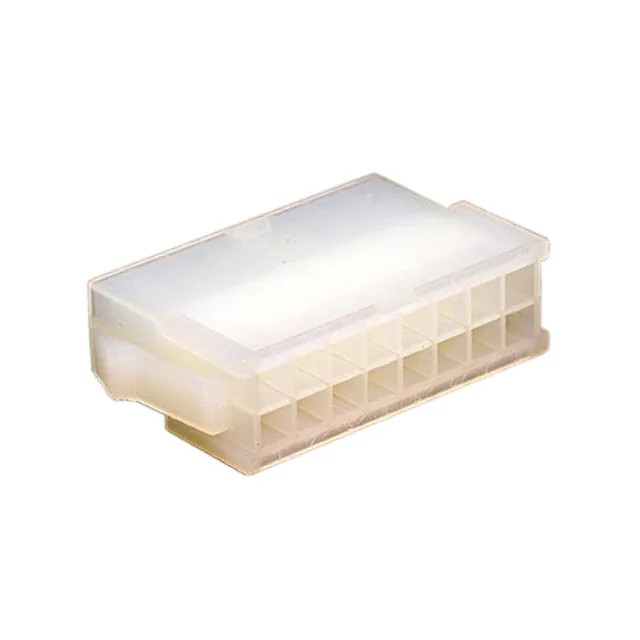

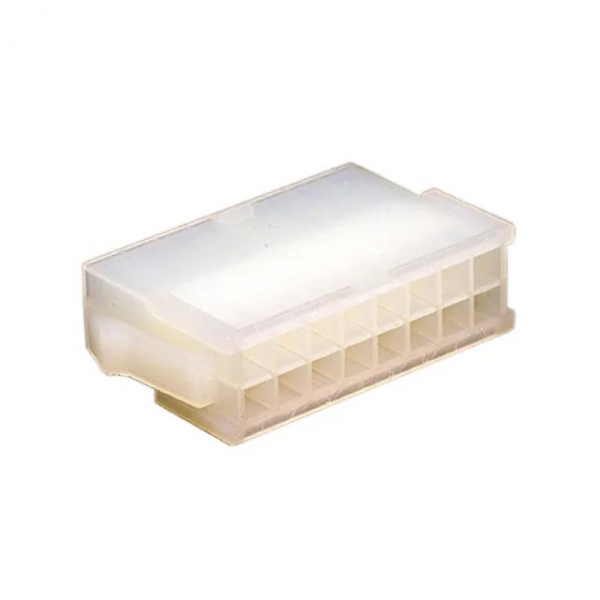

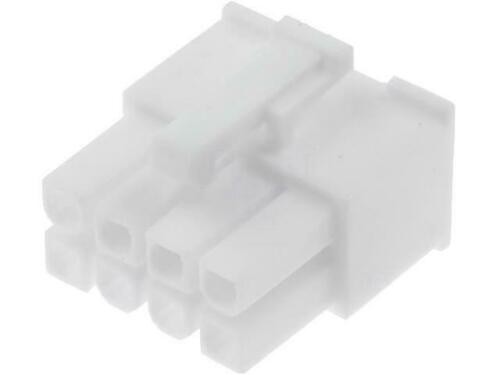

Plug Molex Mini Fit Jr

Manufacturer MOLEX
Connector plug
Type of connector wire-board
Kind of connector female
Connector series Mini-Fit Jr.
Contacts pitch 4.2mm
Number of pins 4-48
Connector variant w/o contacts
Mechanical mounting for cable
Rated voltage 600V
Flammability rating UL94V-0
Locking system latch
Operating temperature -40...105°C
Type of pin configuration 2x5
Alias 390121xx
Engineering PN 5557-02R-210
Engineering PN 5557-04R-210
Engineering PN 5557-06R-210
Engineering PN 5557-08R-210
Engineering PN 5557-10R-210
Engineering PN 5557-12R-210
Engineering PN 5557-14R-210
Engineering PN 5557-16R-210
Engineering PN 5557-18R-210
Engineering PN 5557-20R-210
Engineering PN 5557-22R-210
Engineering PN 5557-24R-210
