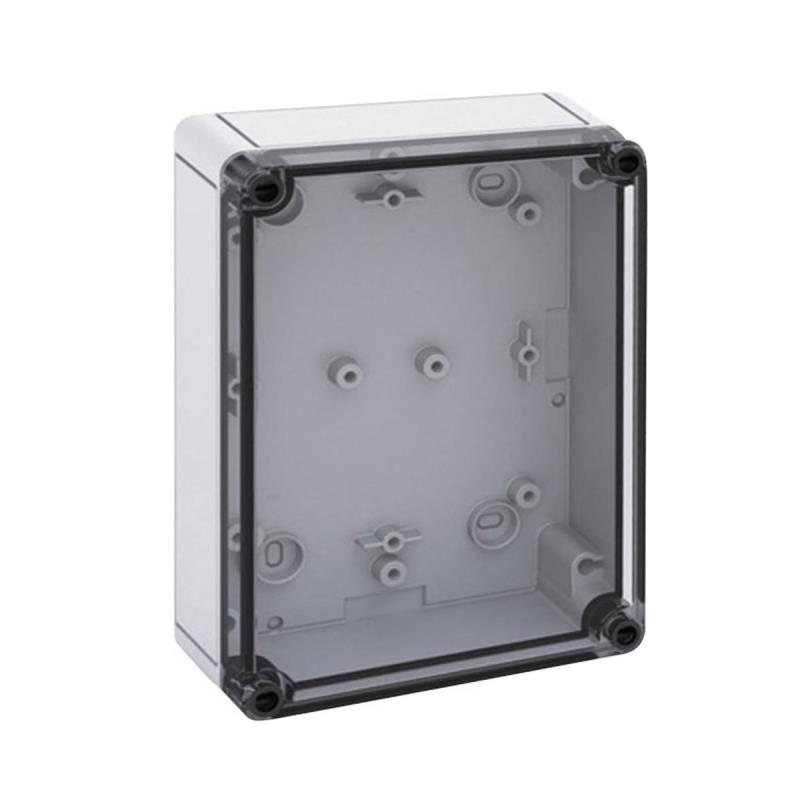

Housing gray cover transparent 100 x 52 x 40 mm

Ideal for small series and protypes to install boards and controls protected.


Environmental conditions:
Ambient temp. (minimum): -35 °C
Ambient temp (maximum): 80 °C
Ambient temp. (24 hours): 60°C
Max.rel. Humidity at 25° C (short term): 95%
Max.rel. Humidity at 40° C: 50%
Material box:
Polycarbonate, gray similar to RAL 7035
Lid: polycarbonate, transparent
Gasket: polyurethane
Cover screw: stainless steel V2A

More properties
Degree of protection: IP66 - according to EN 60529 / DIN VDE 0470-1
Impact resistance: IK08 according to DIN EN 5012 / VDE 0470 part 100
Protection class: II - protective insulation according to VDE 0106
Rated insulation voltage AC: 690 V
Rated insulation voltage DC: 1000 V
Heavy Metal Free: Yes
PVC Free: Yes
Silicone Free: Yes
Suitable for outdoor use: Yes
Burning behavior according to UL 94: V-2 according to UL 94
Combustion behavior according to VDE: 960°C according to VDE 0471/ EN 60695
Flammability according to UL 50 / UL 746C: 5VA according to UL 50 / UL 746C
Sealable: Yes Weather Resistance: Yes
Cover screw torque: 2 Nm
Cable entries: Yes
