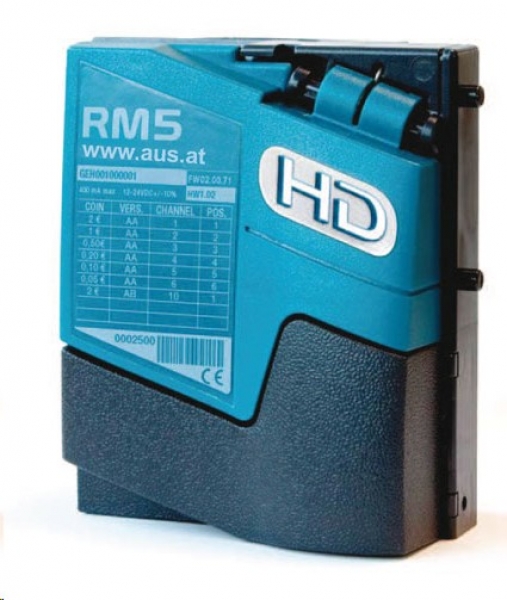

RM5HD G electronic coin validator

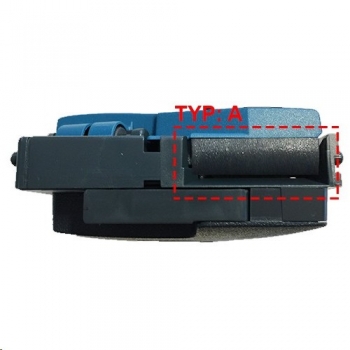

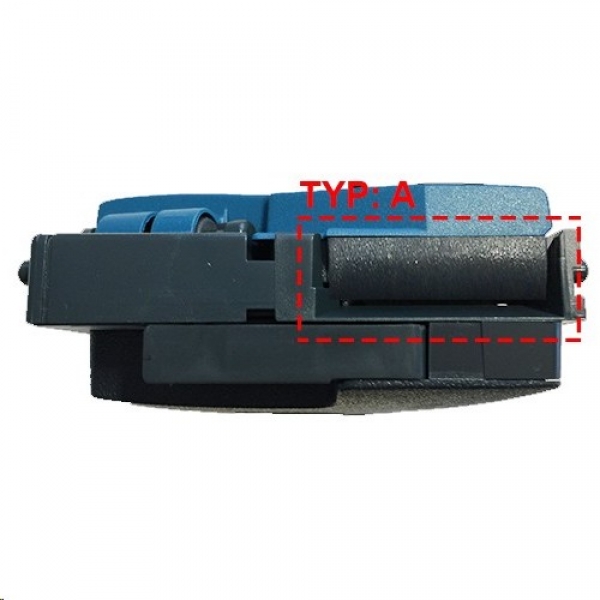

Model A: Accepted coins (mm). Ø 16x1,5 - Ø 27 x 2,4 mm

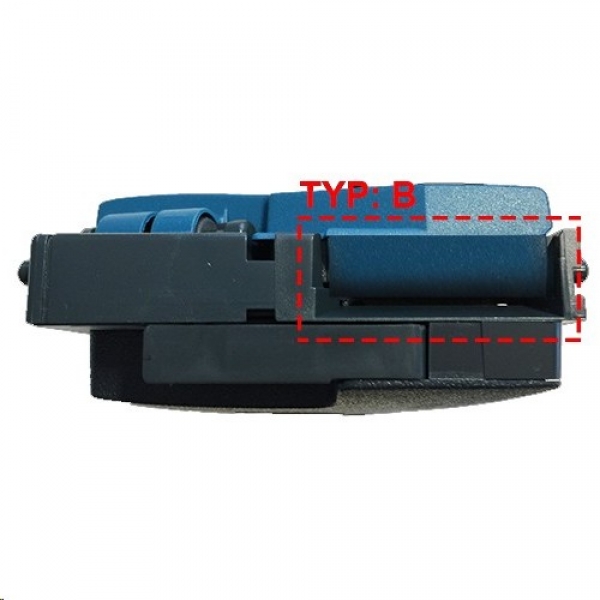

Model B:Accepted coins (mm). Ø 16x1,5 - Ø 31,5 x 3,3 mm
The new coin validator, with its 10 parameters of validation and 5 different sensors, is able to reach the highest level of validation and discrimination of money and fakes thanks to the high-speed of 6 money/sec.
RM5 HD will surprise you with its features and functions. Its high discrimination capability and the remarkable acceptance speed represent the state of the art of electronic coin validators increasingly reliable and fast, ideal partners for every entertainment or automatic distribution machine.
A versatile coin mechanism,
which perfectly integrates with the machine onto which it is installed.
Creating the ideal coin mechanism with an unlimited budget is rather simple
the real challenge is obtaining the highest performance keeping costs as low as
possible. RM5 HD is a winner under all points of view, combining considerable
performance and a really competitive price
The innovative material of construction ensure strength and durability, while the up-to-date electronic and mechanical anti-fraud systems provide a high degree of safety on various types of installation.
General characteristics
Virtual Dip SwitchNew device for configurations on the field
Performance
HD high discrimination system based on 10 different para-meters
concerning: - frequency measurement - dimension - phase
compatible with all sorters types available on the market
5 sensors technology of identification:
- 3 inductive sensors
- 1 optical sensor
- 1 magnetic sensor
High- speed of acceptance: 6 money/sec. (also of different diameter)
Up-to-date electronic and mechanical anti-fraud system:
- electronic antifiishing device
- money movement identification device
- mechanical trap
- wire cutting bladeInnovative material of construction
Security:
Advanced anti-fraud systems
New and >advanced anti-fraud systems allow detecting the most common fraud systems, such as the introduction of retrieving wires that are electronically detected. >
Special mechanical traps and the electronic detection of the coin movement direction ensure >high safety standards against burglary attempts.
CC-talk Version art.no.9930500659 electronic safety ensured by the ccTalk protocol.
Interfaces
Serial interface to talk with external systems (portable programmer, pc) to adjust, test and update the operating value/parameter tables.

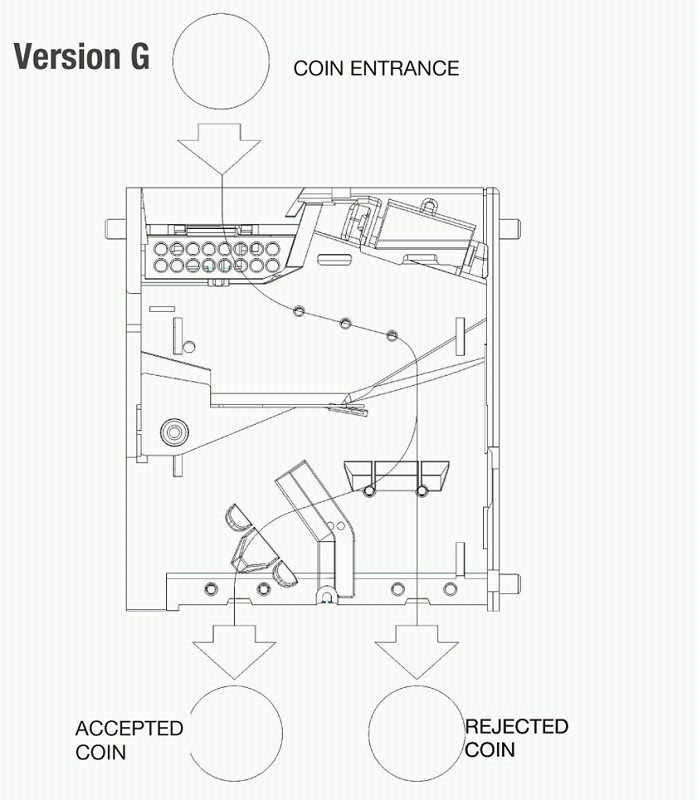

Type Coin Entry Coin Reject G Top Bottom F Top or Front Front B Top or Front Bottom V Top Front
INSTALLATION
Adapters, different front plates and interface permit to build it to the RM5 in most diverse devices.
Options:
Front plates:
- F1 (60x118mm)
– F3 (60x180 mm)
– F6 (60x152 mm)
- A vast range of coin sorters and adaptors.
- Coin collecting funnels of different heights: 9,16,25 mm
- Pc kit composed by
- Coin validator support;
-Power unit;
-Test box
-Interface cable
-Multiconfig software.
Coin collecting funnels with different heights: 9,16, 25 mm
A vast range of coin sorters and adaptors.
- Art.no.9930500273: standard cable 40 cm to connect the coin mechanism to the host machine.
Available lengths:
15 - 20 - 40 - 60 - 80 - 100 - 150 - 250 cm.- Art,no.9930500486:
Interface to connect an RM5 Evolution to a pc in serial mode. Art.no.9930500592
SERIAL USB:
cable to turn a serial connection into a USB connection.

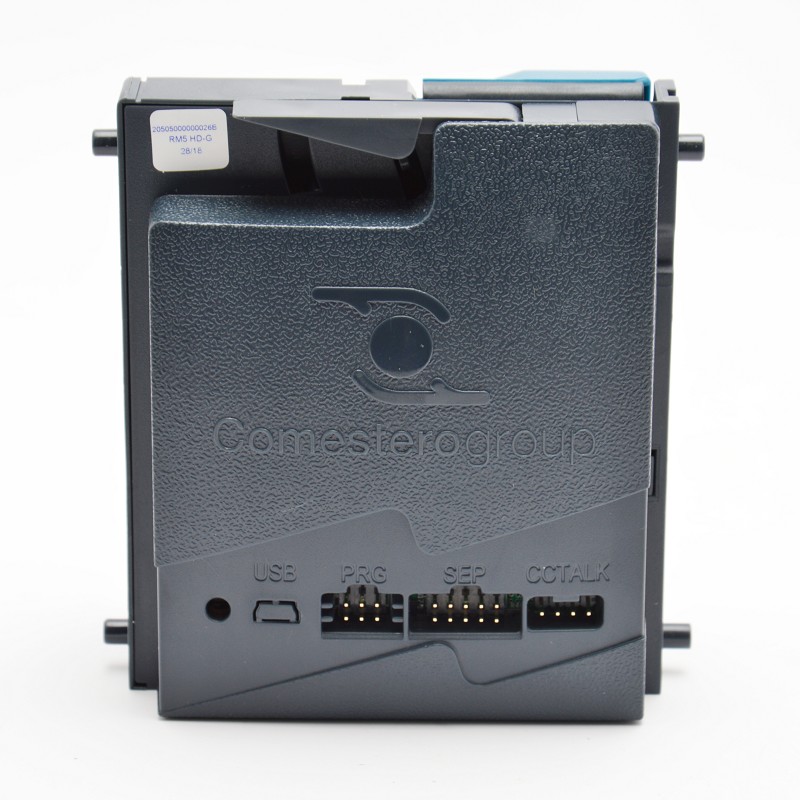

Outputs credit reporting: Parallel, Binary, Pulse.
Sorter control: up to 5 sorting channels with protection against short circuit and overcharge.
Output
Credit reporting: Parallel, Binary, Pulse. RS232, CC-talk, Sorter control: up to 5 sorting channels with protection against short circuit and overcharge.
Programming systems:
Thanks to the state-of-the art electronics used, the coin validator can be programmed in three different modes:
SELF-PROG FUNCTION, PORTABLE PROGRAMMER
PC KIT
Hint:
In case of inductive load, it is necessary to externally protect outputs by means of clampdiodes (1N4001 or equivalent).
Please refer to the diagram. Frontplate is not content of the delivery, please order your frontplate.
Technical characteristics

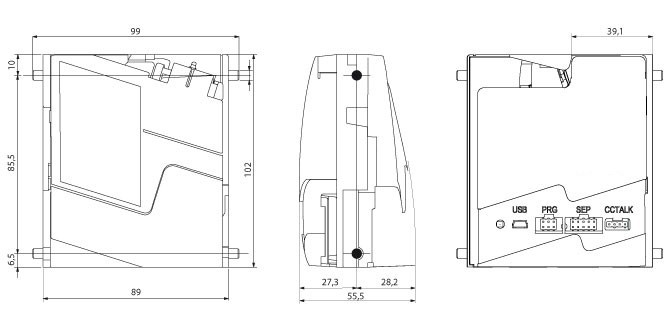

Dimensions (lxhxw) (mm) 102x99x55,5
Weight (g) 200
Power supply 12 ÷24 vdc (± 10%)
Input stand by: 70mA
max acceptance: 400mA max
Operating temperature 0÷50 °C
Model A:
Accepted coins (mm). Ø 16x1,5 - Ø 27 x 2,4 mm
Acceptance speed (without sorter) until 6 coins/sec
Model B:
Accepted coins (mm). Ø 16x1,5 - Ø 31,5 x 3,3 mm
Acceptance speed (without sorter) until 6 coins/sec
