Cashless WorldKey Ultra Lite
WorldKey extends its range to offer an array of solutions for the many installation and management requirements. WorldKey Ultra Lite is here: high safety standards, guaranteed by the MIFARE® technology platform. Designed specifically for the world of Veinding, simple to use and practical to install, WorldKey Ultra Lite is also convenient for its price. It manages key (or tag) credit promptly and efficiently in MDB slave mode. It is compatible with all Master MDB devices (vending machines and change-givers) available on the market, WorldKey Ultra Lite offers great versatility in payments.

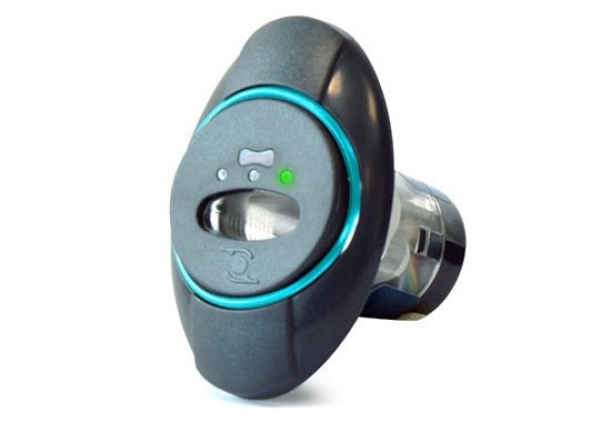

Features CPU-integrated dedicated reading head for inserting key/tag. Two different fronts: round, most commonly used, and oval, ideal for retrofitting. Reading head equipped with red light signal according to EVA-CVS standard with 3 status LEDs. Supported protocol: MDB slave. Activation of keys/tags at first insertion, which can be included as an option. Compatible with all change-giver coin mechanisms available on the market.
Functions
Management of user groups.
Management of a second MDB address.
Black list management.
The managed support is compatible with all of the ones available in the WorldKey range.
Technical specifications - CPU

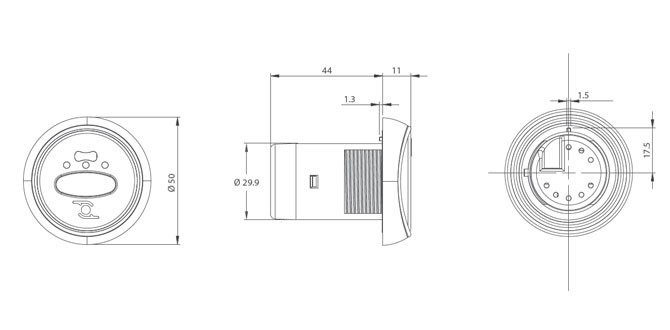

Dimensions (LxHxD) Reading head: 50 x 75 x 55 mm
Connection module for BUS MDB: 78 x 39.5 x 22 mm
Weight 75 g
Supply voltage compliant with MDB protocol
Power consumption 1.15 W
Operating temperature - 20 ÷ + 50 °C
Humidity (non condensed) 90%
Storage temperature - 20 ÷ + 70° C
Technical specifications - keys/cards/tags
Technology used Inductive transmission, data and energy ISO 14443
Mifare® encrypted Transmission frequency 13.56 MH
