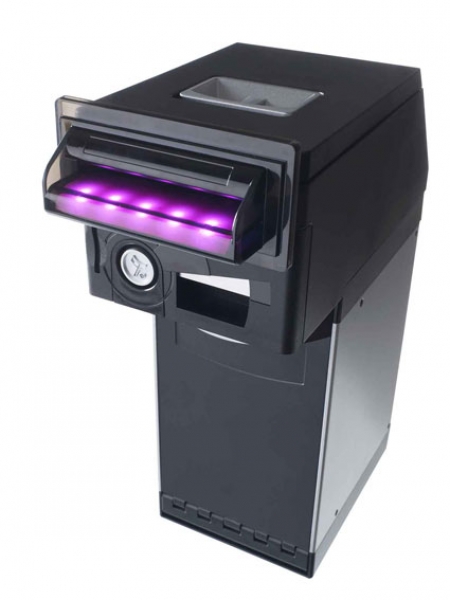

Banknote validator NV200
NV200 bill validator with integrated stacker for 500 notes for worldwide use. Recommended Applications: High Volume, High Security, Gaming, Kiosk, Betting
Features
Innovation in a standard space envelope Triple lock capability Lockable validator head Secure cashbox
- Dual lock High acceptance rate of typically 99.8% using SPF technology Modular interfacing Easy Access MMC Card Interface for fast programming
Wide 86mm opening Accepts skewed insertion
- 4 ways Accepts industry standard barcode tickets - 4 ways
Option
Dataset availability Multi Coloured Bezel Multiple currency validation
Interface Protocol:
SSP - Smile Secure Protocol (Software libary for C++ und C # avaible)
CC-talk - ccTalk
MDB - Multi-Drop-Bus
PL1 - Pulse Mode
PAR - Parallel
BIN - Binary
Hints:
Bill validator supplied without connection cable, please when ordering cable specially to order.
Standard setting is 5-500 Euro protocol SSP!
If you need another protocol or currencies, please let us know when you place your order!
When completing the shopping card - in the section "Payment" - you will find the "personal memo" field.
Here you can announce your desired programming.
Technische Data:
USB on-board Accepts and stacks notes in just 3 seconds
Power supply 12VDC +/- 10% Simple and advanced programming tools using a PC, handheld unit or MMC Card
Optical and mechanical anti-strimming devices
Stacker capacity accepts 500 street grade notes
Weight: 3.0kg Supporting all standard protocols
Compact dimensions for more technical details use the NV200 manual
